Altiglo AH10 Heliport Flood Light – Streamline International General Trading LLC

Specification	Details
Power voltage:	220VAC, 48VDC，50~60Hz
Power Consumption:	30W or 60W
LED Life Time	100,000 Hours
Working mode:	Steady Burning
Light source life：	10000h
Materials:	Lens-PC
Body	Aluminum
IP rate	IP66

The AH10 Heliport Flood Light is a high-performance aviation lighting solution designed to provide uniform illumination for heliports, helidecks, touchdown and lift-off areas (TLOF), and surrounding operational zones. Engineered with advanced LED technology, it delivers exceptional brightness, energy efficiency, and long-term reliability, ensuring safe helicopter operations during night-time and low-visibility conditions.

ELECTRICAL CHARACTERISTIC - Power voltage : 220VAC, 50~60Hz 48VDC
LED Source : High Power LED
Power Consumption : 35W or 60W
OPERATION -Working mode : Steady Burning
Light source life : 10000h
Power Consumption : 5W
Working Mode : Steady-burning
Supply Frequency : 50Hz ~ 60Hz
Luminous Flux : 4550Lm(35W) 7800Lm(60W)
Emitting Light Colors : White
MECHANICAL STRUCTURE - Body Material : Yellow powder coated aluminum

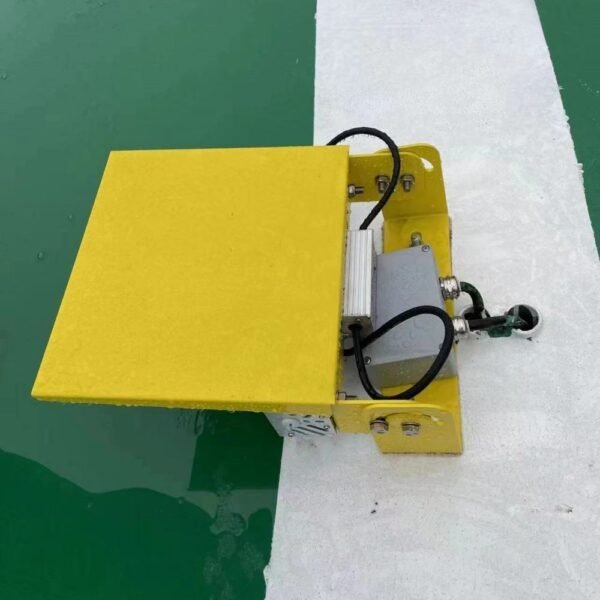

Install the light on a stable, smooth surface with adequate structural strength. If a suitable mounting surface is unavailable, custom mounting brackets can be provided upon request.
During installation, avoid placing the fixture near other strong light sources. Ensure that the photocell remains unobstructed and is not covered by nearby objects.
Before connecting the light, verify that the power supply voltage matches the unit's rated electrical requirements.

High-performance LED technology with a minimum service life of 75,000 hours.
White light output compliant with CIE Chromaticity Boundary requirements.
Anti-glare floodlight hood minimizes glare and enhances pilot visibility
Adjustable hinge-type mounting system allows precise beam alignment
Suitable for mounting on flat surfaces using a frangible coupling
Stable operation with anti-electromagnetic interference and anti-vibration characteristics, making it ideal for radar-sensitive areas.
High-visibility yellow cast aluminum housing, lens frame, and mounting arm designed for harsh environmental conditions.
Protective metal guard enhances lens durability and impact resistance.
High-transmission polycarbonate (PC) diffuser with excellent impact resistance, UV protection, thermal stability, and aging resistance..
Standard cable interface for simplified installation and maintenance
