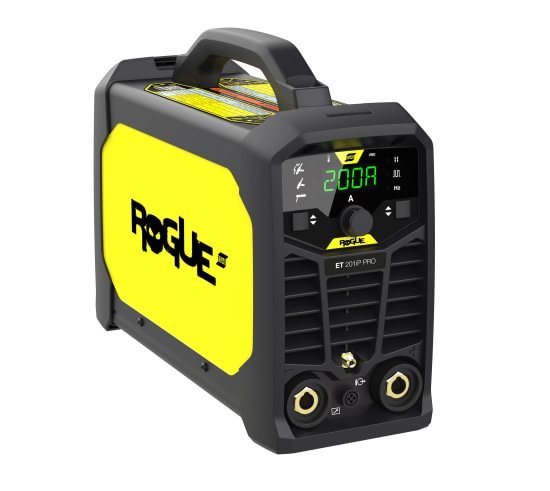

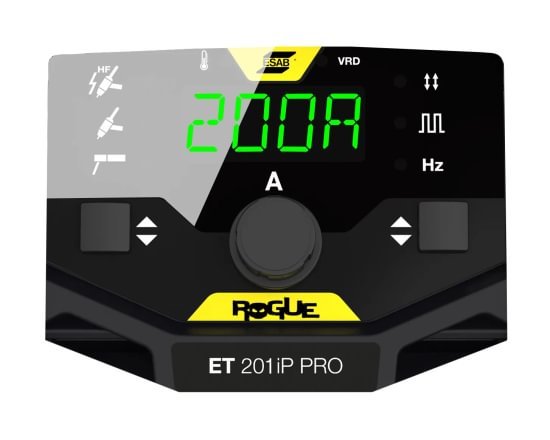

ESAB Rogue ET 201iP PRO 200A HF TIG & Stick Welding Machine

Category: Tools & Building Materials
Stock Status: In Stock
Quantity

The ESAB Rogue ET 201iP PRO is a powerful and highly portable welding machine developed for professional TIG and Stick welding applications. Its advanced inverter technology delivers excellent arc characteristics, reliable ignition and precise control across a wide variety of materials and welding conditions.

Maximum welding output of 200A
TIG/GTAW and Stick/SMAW welding processes
Non-contact high-frequency TIG arc starting
Pulse TIG frequency adjustable from 0.2–500 Hz
Pulse SMAW frequency adjustable from 0.2–100 Hz
Adjustable TIG pre-flow and post-flow
Adjustable starting and finishing current
Adjustable ramp-up and ramp-down time
2-stroke and 4-stroke TIG operation
Adjustable Hot Start and Arc Force in Stick mode
Power Factor Correction for stable welding performance
Supports compliant generator operation
Can operate with extension cables up to 100 metres
Compatible with an optional current-adjusting foot pedal
IP23S-rated durable enclosure
Lightweight and portable 9.6 kg construction
Energy-saving mode consuming approximately 50W

  • Primary voltage : 115/230V AC ±15%, single phase
  • Frequency : 50/60 Hz
  • Maximum output : 200A
  • Rated input : 7 kVA
  • Current range : 10–200A, depending on process
  • Open-circuit voltage : 78V DC
  • Pulse TIG frequency : 0.2–500 Hz
  • Pulse SMAW frequency : 0.2–100 Hz
  • Energy-saving mode : 50W
  • Protection class : IP23S
  • ESAB Rogue ET 201iP PRO power source
  • 3m mains cable with plug
  • 115V/230V power adapter
  • Shoulder strap
  • Wear-parts set including tungsten electrode
  • SR-B 26-type TIG torch with flexible neck and potentiometer, 4m
  • Work lead with clamp, 3m
  • SMAW electrode holder with 3m lead
  • Gas regulator
