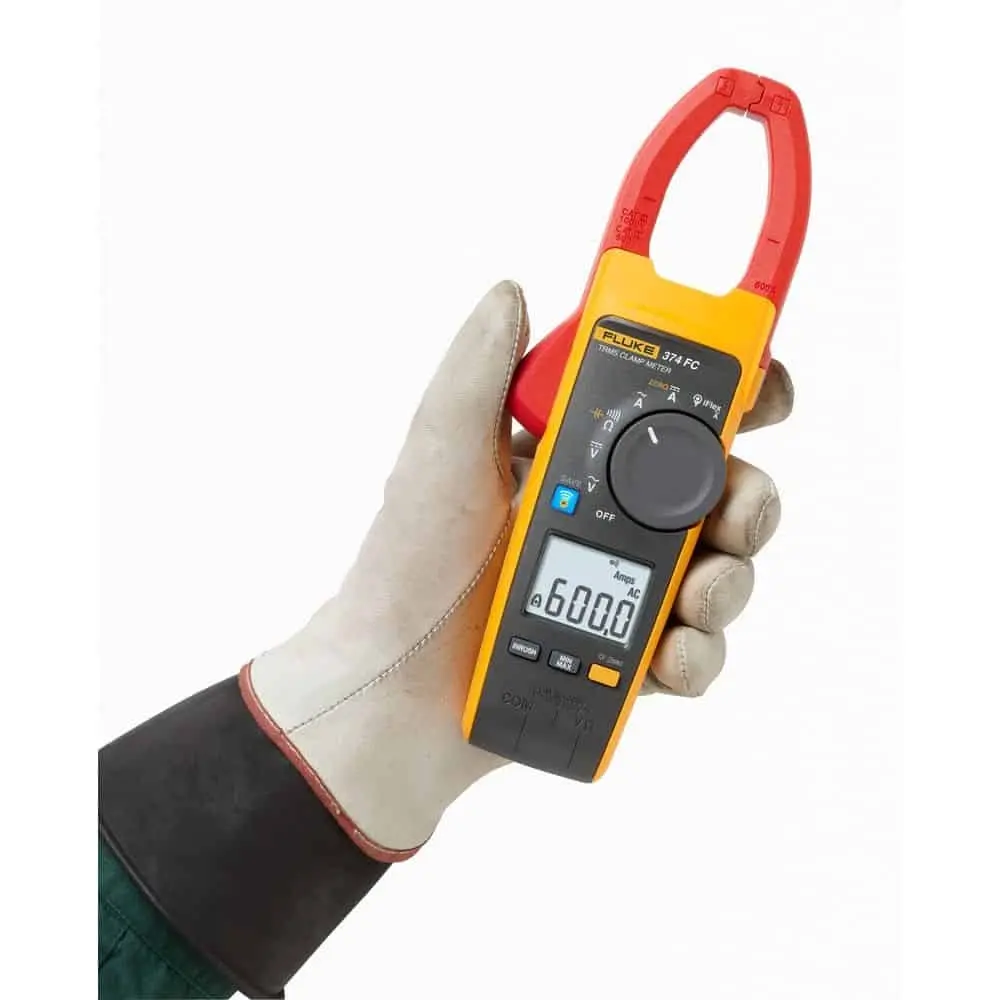

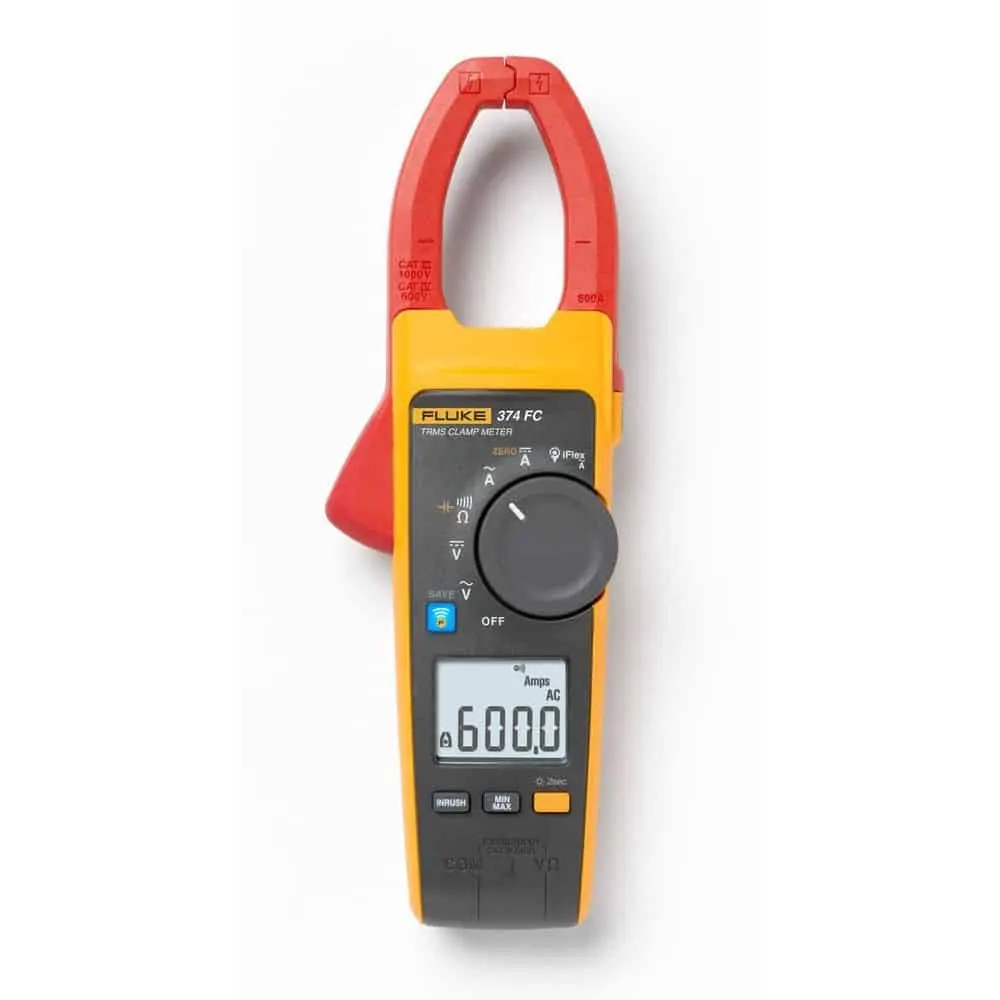

Fluke 374FC True RMS AC/DC Clamp Meter – Streamline International General Trading LLC

Brand	Fluke
Model	374FC
AC Voltage	1000V
AC Current	600A
Jaw Size	34mm
Safety Rating	CAT IV 600V, CAT III 1000VCapacitance
Warranty	3 years

The Fluke 374 True RMS Clamp Meter can read up to 600 V and 600 A in both AC and DC modes. Additionally, the 374 is compatible with the new iFlex flexible current probe (sold separately), which increases the measurement range to 2500 A AC and provides increased display flexibility, and improved wire access.

iFlex flexible current probe (sold separately) expands the measurement range to 2500 A ac while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access
Features CAT III 1000 V, CAT IV 600 V safety rating
Propietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
Ergonomic design fits in your hand and can be used while wearing personal protective equipment
Large, easy to read backlight display automatically sets the correct measurement range
Provides True-RMS voltage and current measurements to accurately measure non-linear signals
Includes Min/Max/Avg and inrush recording to capture variations automatically

AC Current : 600A
AC voltage : 1000V
DC Current (mV Range) : 500mV
DC current : 600A
DC voltage : 1000A
Resistance : 6000Ω
Capacitance : 1000 μF
Frequency : 5Hz to 5000 Hz
Crest Factor (50/60 Hz) : 2.5 @ 600A
Crest Factor (50/60Hz with Probe ) : 2.5 @ 1400A, 1.42 @ 2500A
Batteries : 2 AA, NEDA 15A, IEC LR6
Size : 249 x 85 x 45 mm

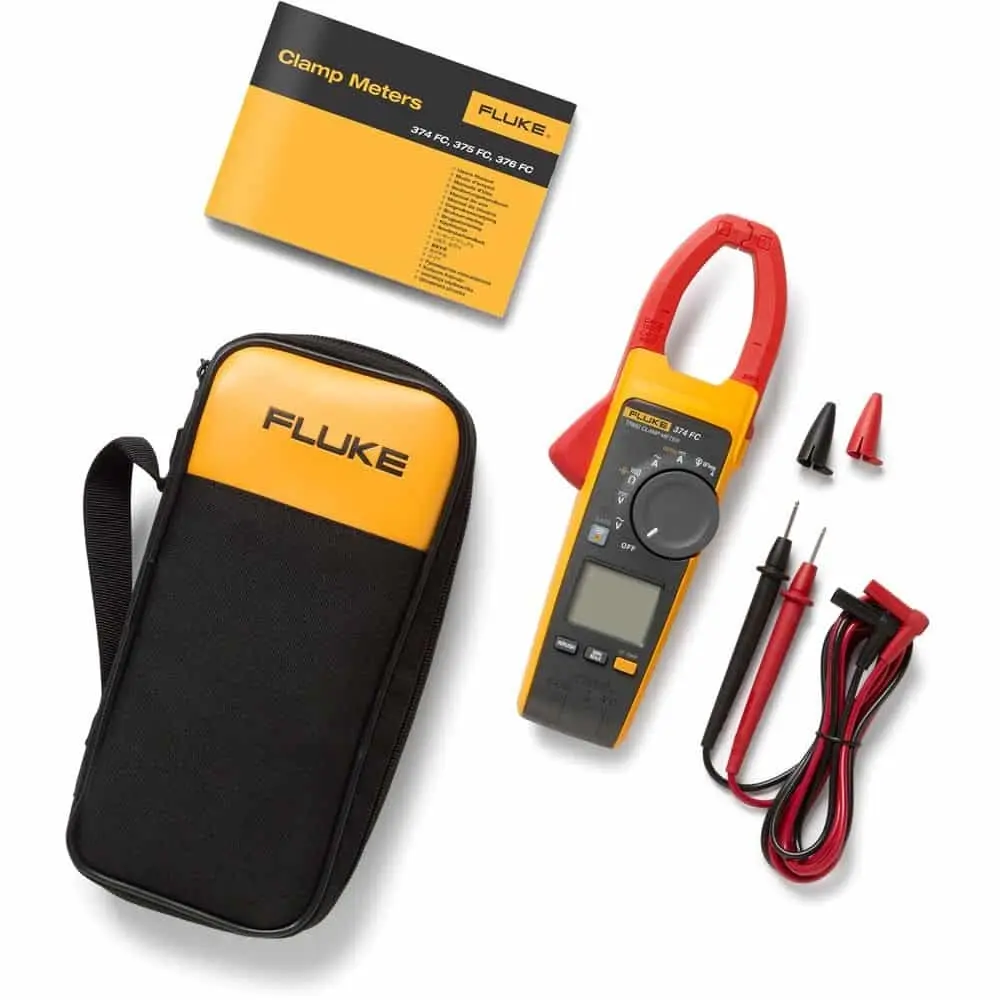

Soft carrying case
TL75 test leads
Two AA Alkaline batteries
Coated instruction card
Safety information sheet

Download the official product document below to view complete engineering specifications, compliance certifications, and maintenance requirements for this series.

Download Technical Datasheet PDF Format Download User Manual PDF Format
