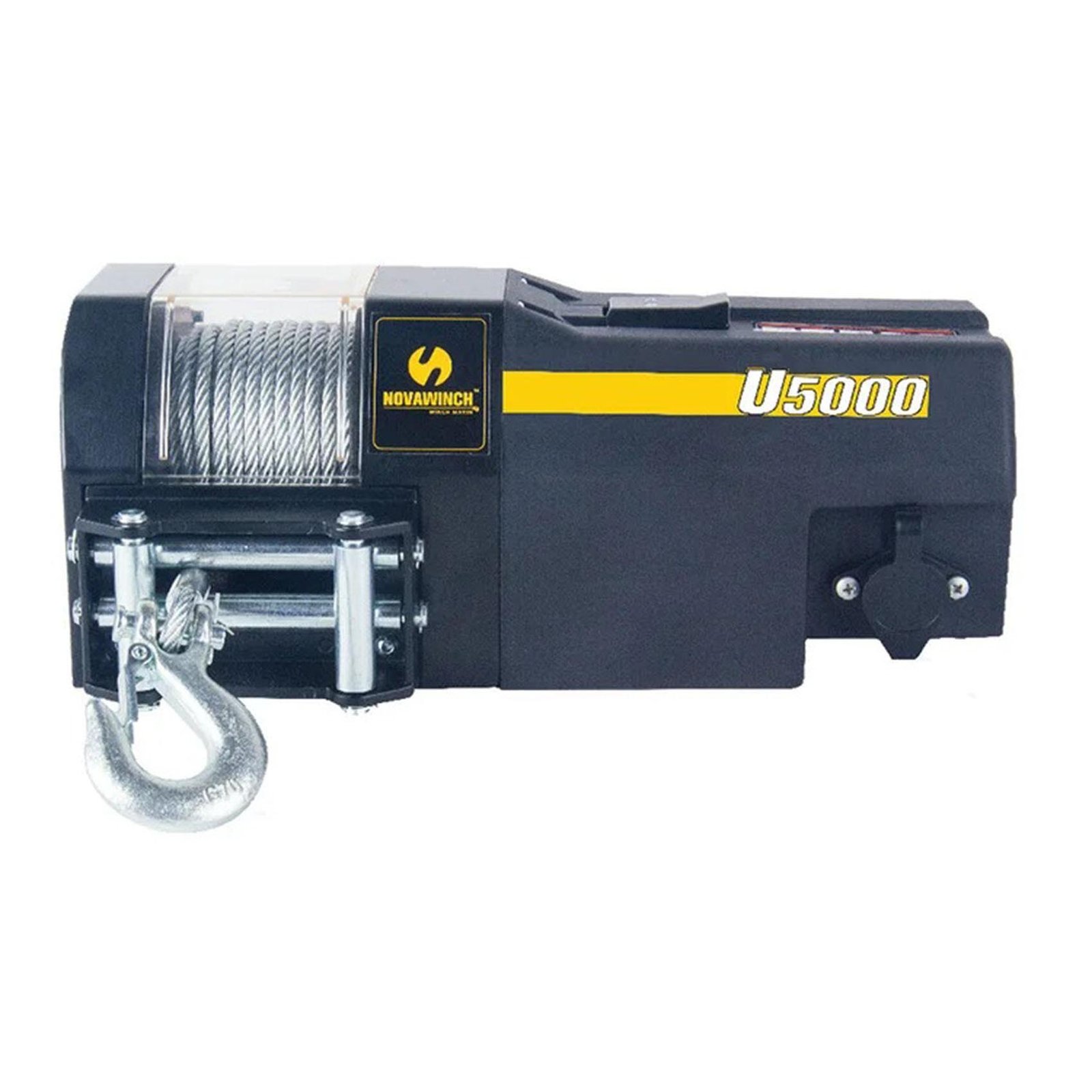

THE U5000 BRINGS A UNIQUE FOOTPRINTED WINCH DESIGNED SOLELY FOR TRAILERING BACK TO THE MARKET. 30 FOOT REMOTE MAKES CHECKING SAFE OPERATION EASY. A SIMPLE LIFT TAB ON THE TOP OF THE WINCH ENGAGES THE FREESPOOL FOR EASY UNROLLING OF WINCH CABLE. THE SEALED MOTOR PROVIDES A QUICK PULL CAPABLE OF 5,000LBS. THE UNITS PROTECTIVE PLASTIC COVER KEEPS WEATHER AT BAY, EXTENDING THE LIFE OF THE WINCH.
RATED LINE PULL : 5000LBS (2268 KGS)

MOTOR(SERIES WOUND) : 12V DC: 5.6 HP (4.2 KW)

GEAR BOX : 1-STAGE PLANETARY GEAR

GEAR RATIO : 159:1

CLUTCH : LIFT LEVER

BRAKING ACTION : DYNAMIC AND MECHANICA

LINE PULL LBS (KGS) : LINE SPEED FPM(MPM) NO LOAD 14.7 FPM (4.5 MPM) - MAX LOAD 3.3 FPM (1.0 MPM)

MOTOR CURRENT AMPS : NO LOAD 30 - MAX LOAD 350

FAIRLEAD : INTEGRATED 4-WAY ROLLER

SYNTHETIC WIRE: 1/4" X 49.8' (6MM X 15.2M)

REMOTE : 30' HANDHELD

DIMENSIONS : 15.1" X7.2" X 5.98" (383 X 183 X 152)

MOUNTING BOLT PATTERN : 2-BOLT 3.69" (93.7MM)

WEIGHT : 35.9 LBS (16.3KG)
