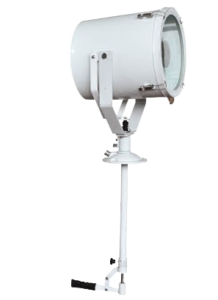

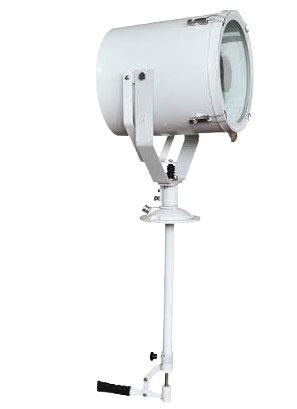

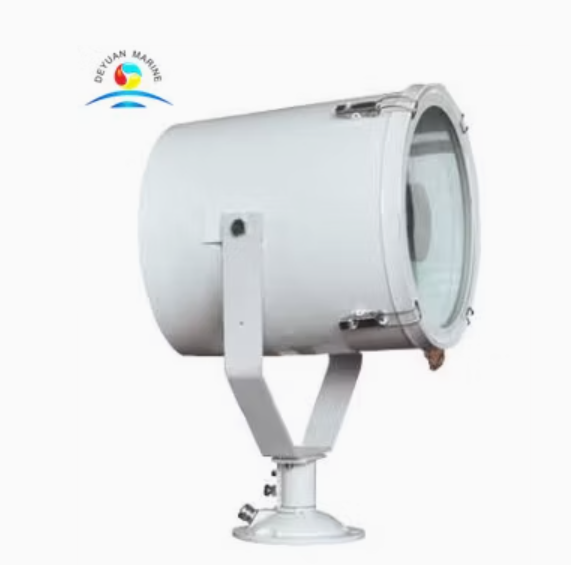

The Suez Canal Searchlight Cabin Control 220V 1000W OGMAX is a high-power marine searchlight designed for shipboard navigation and long-range illumination. Its 1000W light source and cabin-control operation provide powerful, convenient lighting from inside the vessel.
Voltage: 220V
Power: 1000W
Control: Cabin Control
Housing Material: Stainless Steel
Bracket: Stainless Steel
Lampshade: Toughened Glass
Beam Type: Parallel / Concentrated
Compliance: Grade Entry Norms for Steel Ships
luminous flux: 23000
Lamb holder: GX9.5
Cable outside diameter: Φ10–Φ12
Protection glass: IP56
Weight: 20 kg

Stainless Steel Construction : Durable stainless steel housing and bracket for corrosion resistance in marine environments.
Toughened Glass Lampshade : Provides durability and protection for the light source.
Brass Base : Strong, high-quality brass base for reliable mounting.
Wide Horizontal Adjustment : Can rotate approximately 350° horizontally
Vertical Adjustment : Lamp can be tilted up to +30°
Parallel Light Beam : Produces a concentrated beam for long-distance illumination and searching.
Marine Standards : Designed to conform to applicable Grade Entry Norms for Steel Ships.

Download Technical Datasheet PDF Format
