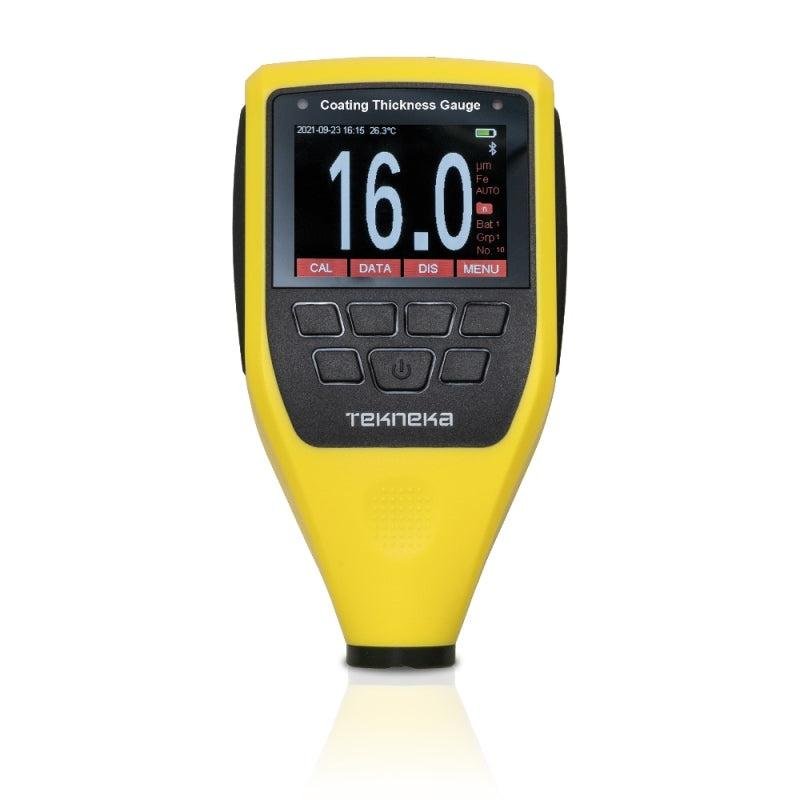

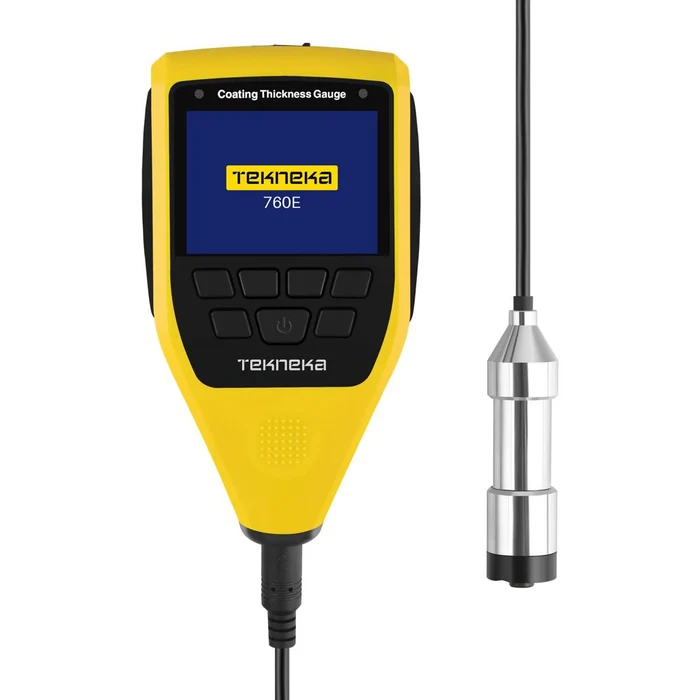

The Tekneka 760E Coating Thickness Gauge is a precision instrument for non-destructive measurement of coating thickness on ferrous and non-ferrous metals. With a 0–2000 µm measuring range, Bluetooth connectivity, and storage for up to 1,300 readings, it supports efficient quality control, automotive paint inspection, and industrial coating assessment.
Features:
LCD display with 2.4-inch high contrast colors with adaptive screen rotation
Measures both Fe & NFe materials up to 2000μm (other ranges customizable)
It has Bluetooth connectivity for real-time viewing on your mobile
Users can view live graphs, trends, histograms, and statistics data on the device
Users can record up to 1,300 points as a batch with multiple groups (10 Batches/13 Groups/10 Points)
Download stored data in a detailed report (.pdf/.txt) using a mobile application
IMO PSPC 90/10 mode (“PASS” or “FAIL” determination based upon the NDFT value)
Very fast & best repeatability with high accuracy of measured results
Comes with an in-built measuring mode specifically for car & general applications
Accurate measurements on smooth, rough, thin, and curved surfaces
Users can perform zero-point calibration and multi-point calibration (up to 4 points)
Easy to recall the readings and delete specific readings
