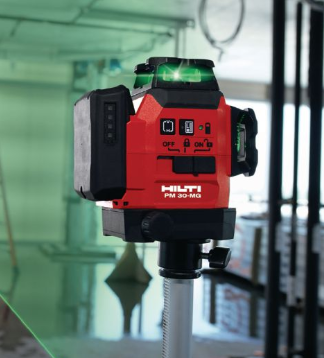

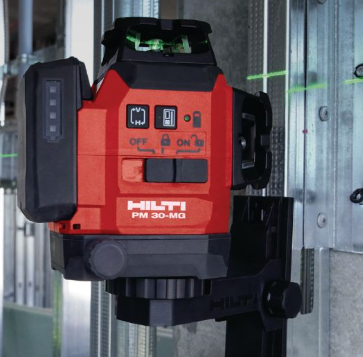

PM 30-MG Multi-line laser level – Streamline International General Trading LLC

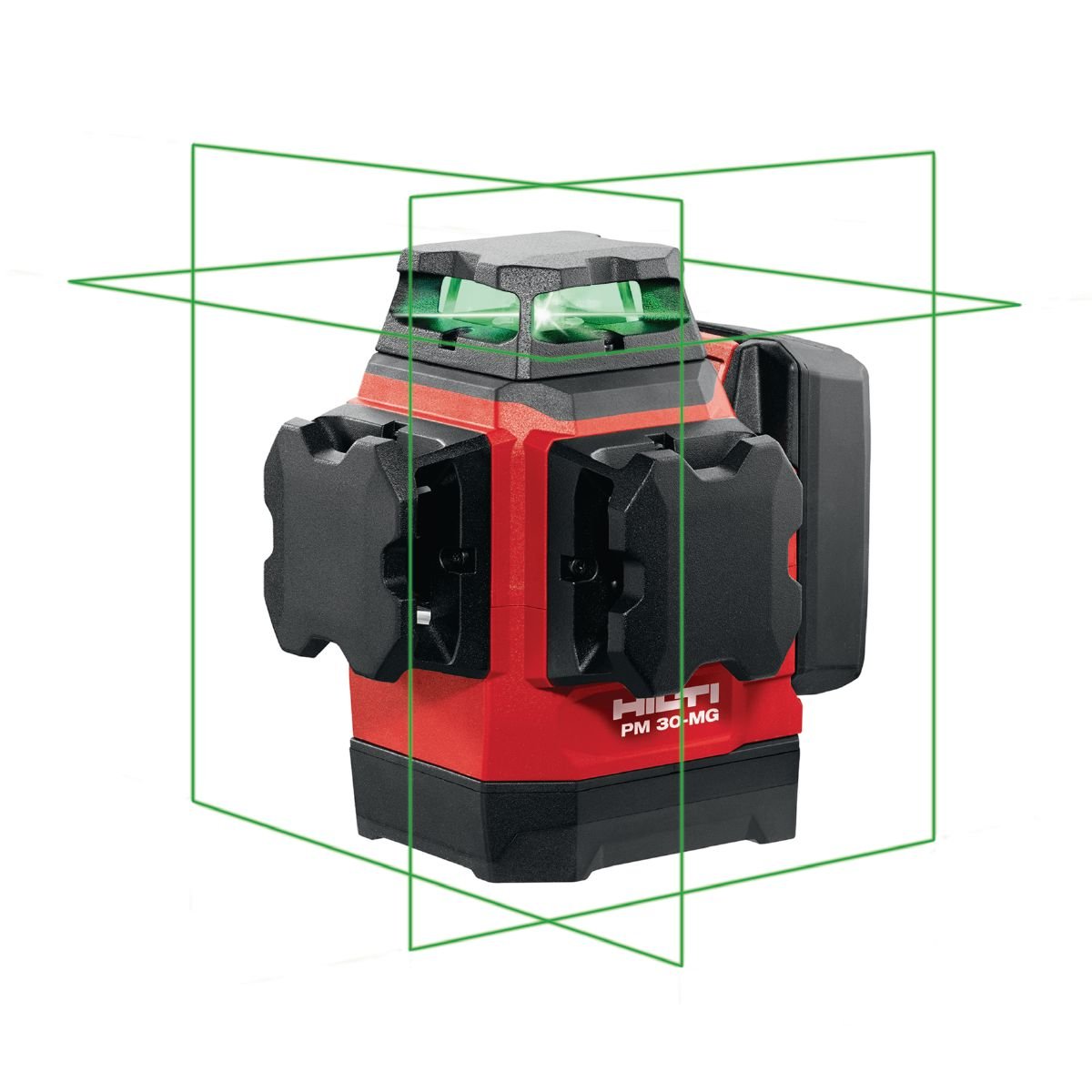

Compact multi-line laser - 3x360° self-leveling green lines for faster leveling, aligning, and squaring (12V battery platform)

Accuracy: ±3 mm at 10 m
Max. operating distance (diameter): 40 m (Lines), 100 m (Lines, with receiver)
Self-levelling range at room temperature: -4.0/ +4.0° °

Compact ergonomic design : our most compact tool for precise and fast 360° aligning, leveling, and squaring
High accuracy : self-leveling and fine adjustment knob for accurate alignment and faster set up
Durable battery life : - rechargeable B12 Li-ion battery for up to 1.5 days of continuous layout work
Increased productivity : out-of-level and low battery alerts to help reduce mistakes and unexpected downtime
Laser class 2 : no special precautionary measures needed Pulse power Unique measuring performance. Hilti Pulse Power works with up to 1 million impulses per second, allowing for highly reliable readings even under the most difficult conditions.

Setting out plasterboard studwork on floors, walls, ceiling
Suspended ceiling
Transferring reference heightsalignment
Vertical alignment of pipes and cables
Levelling electric sockets, cable trays, radiators and pipe installations

Accuracy : ±3 mm at 10 m
Max. operating distance (diameter) : 40 m (Lines), 100 m (Lines, with receiver) 1
Self-levelling range at room temperature : -4.0/ +4.0° °
Self-levelling time : 3 s
Horizontal fan angle : 360 °
Vertical fan angle : 360 °
IP protection class : IP 54 (EN 60529)
Laser type : Line

Download Technical Datasheet PDF Format
