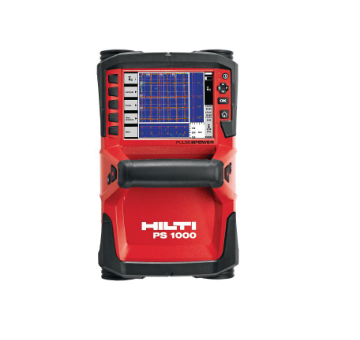

PS 1000 X-Scan Concrete scanner – Streamline International General Trading LLC

Efficient concrete scanner for structural analysis and to locate embedded objects in multiple layers

Accuracy of depth indication: <100 mm: ±10 mm;>100 mm: ±15 %
Localisation accuracy: ±10 mm
Minimum distance between two neighbouring objects: 40 mm

Scanning Technology : Real-time scanning and imaging of concrete structures
Image Generation : Automatically generates accurate images for direct on-site evaluation
Scan Modes : Quickscan Detection, Quickscan Recording, and Imagescan
Scan Visualization : 2D and 3D top views and cross-sectional displays
Object Mapping : Enables easy mapping of embedded objects and identification of multiple layers
Design : Compact all-in-one design for convenient operation
Scanning Performance : Designed for high-speed inspection of large concrete areas
Display / Monitor : Detailed monitor for in-depth on-site scan analysis
Data Evaluation : PC software available for detailed data evaluation and documentation

Locating rebars, tendons, metal and plastic conduits, glass-fibre cables, voids and wood in dry concrete structures at depths of up to 300 mm
Minimise hitting concealed objects when drilling anchor holes or through holes, breaking out openings and in diamond coring and sawing work
Rebar extension (post-installed rebar connections) in structural applications
Inspection of floors, decks, slabs, balconies, etc. in structures such as tunnels, bridges and buildings
Detection of voids and cavities
